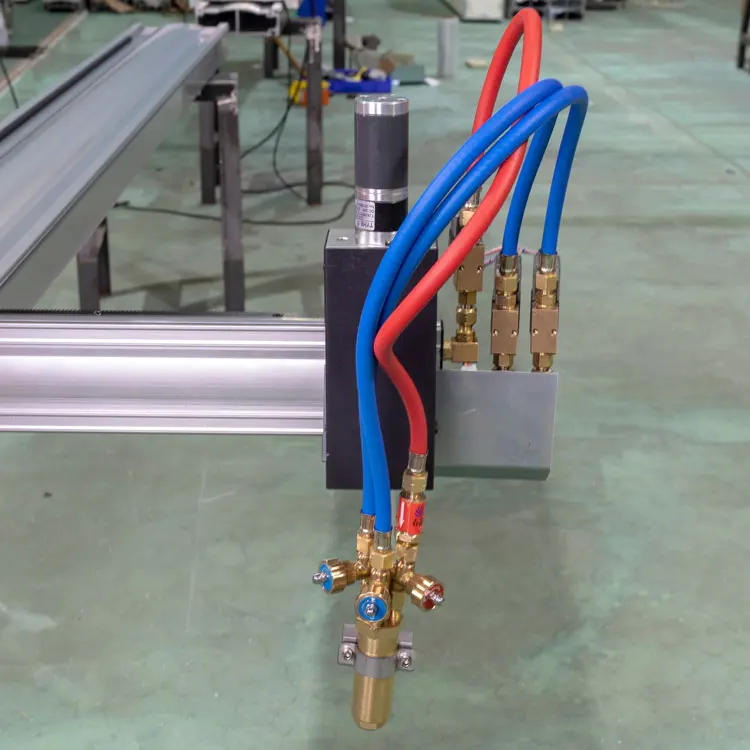

Portable CNC Flame Plasma Cutting Machine Effective Cutting 1600*3000MM CE |
||
|
Model |
BQ-1630 |
|
|
Track size |
X: 1900MM |
Y: 3500mm |
|
Working Trip |
1600*3000mm |
|
|
THC Lifer Trip |
110mm |
|
|
Weight |
104kg |
|
|
MAX Cutting Speed |
6000mm/min |
|
|
Cutting Speed |
Flasma : 2000mm/min |
Plasna : 3000mm/min |
|
Input voltage |
90~132VAC 47~63 HZ |
170~264VAC 47~63 HZ |
|
Power |
300W |
|
|
CNC Monitor |
inch, 800*480, high definition 16 million colors and high brightness LCD |
|
|
CNC Support Code |
Support the EIA code (G code) and various CAM software , such as FastCAM, FreeNest, SmartNest, IBE. Support G code with suffix such as TXT, CNC, NC, Chapter 1 F2000 Series CNC controller Introduction 4 MPG, B3 |
|
|
CNC Support Language |
Chinese/English/French/Portuguese/Russian/Denmark/Korean/Japanese/Vietnamese/Thai |
|
Nesting Software File Format |
Support to import DWG,DXF,CAM,ITF,NC,NC1,PRT,PLT,TXT format |
|
|
Nesting Software Language |
Chinese/Chinese-TW/Czech/Dutch/English/French/German/ltalian |
1. The beam is designed with light structure, good rigid structure and light weight.
2. The incision is small and neat to avoid secondary processing.
3. Suitable for steel plate, aluminum plate, galvanized sheet, 100 steel plate and metal plate.
4. High configuration of CNC system, automatic arc striking, stable performance.
5. Automatically generate standard G-code documents, or input AutoCAD software to generate DXF format documents.
6. Support multi language, system language and power cord are configured according to customer's remarks or country.
7. When air transportation is selected, the y-axis track will be divided into two sections due to the limitation of air transportation length. When truck transportation is selected, it is a whole.
